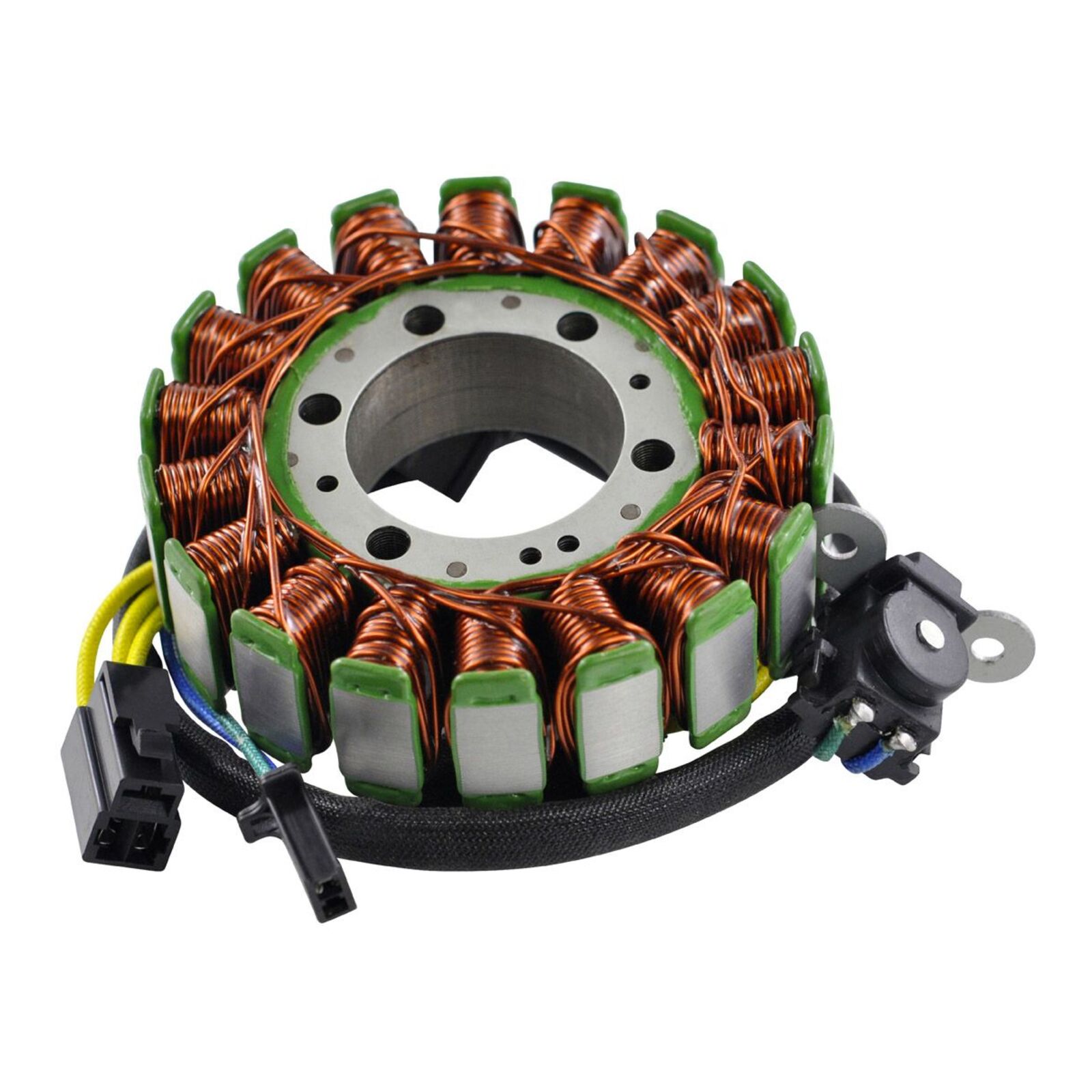

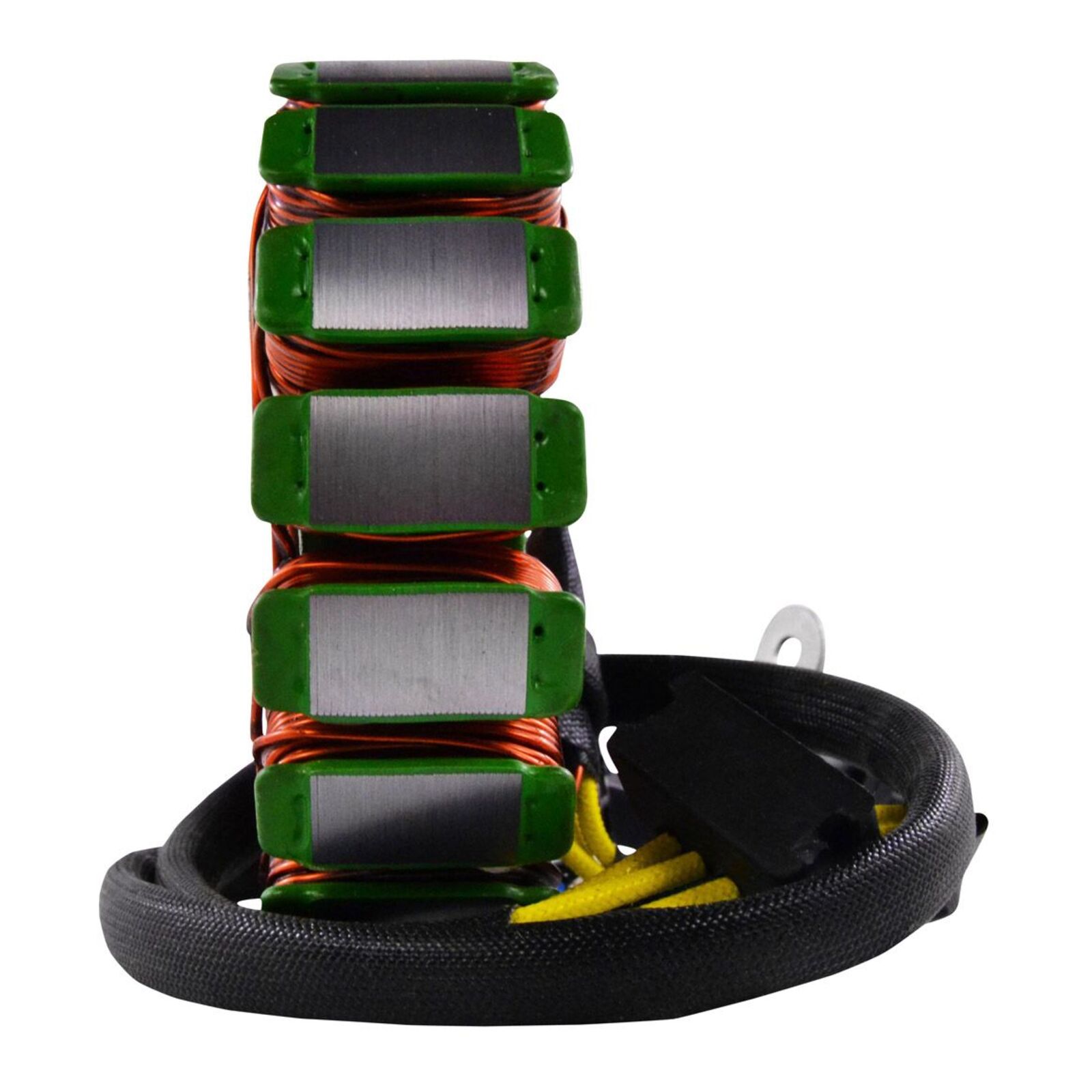

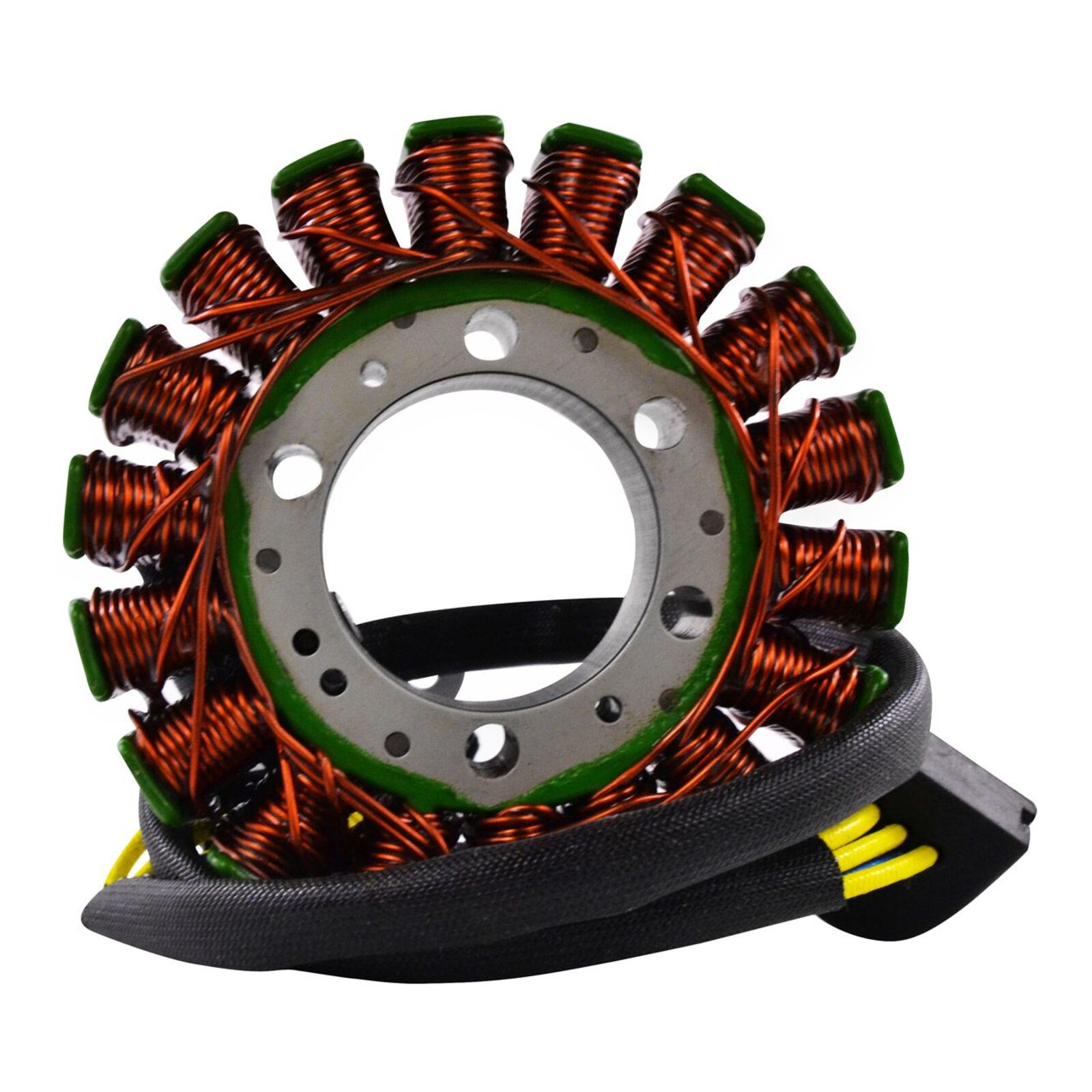

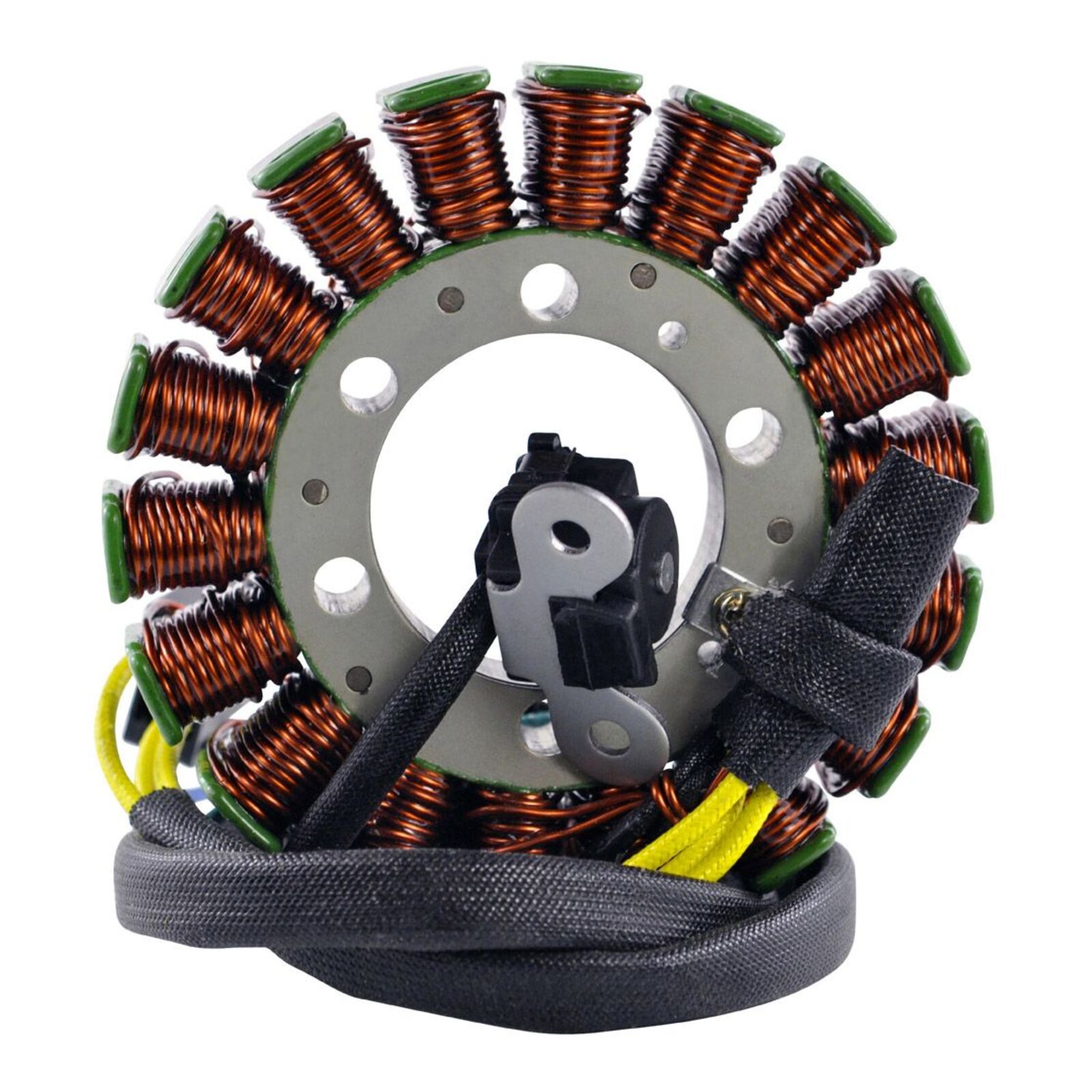

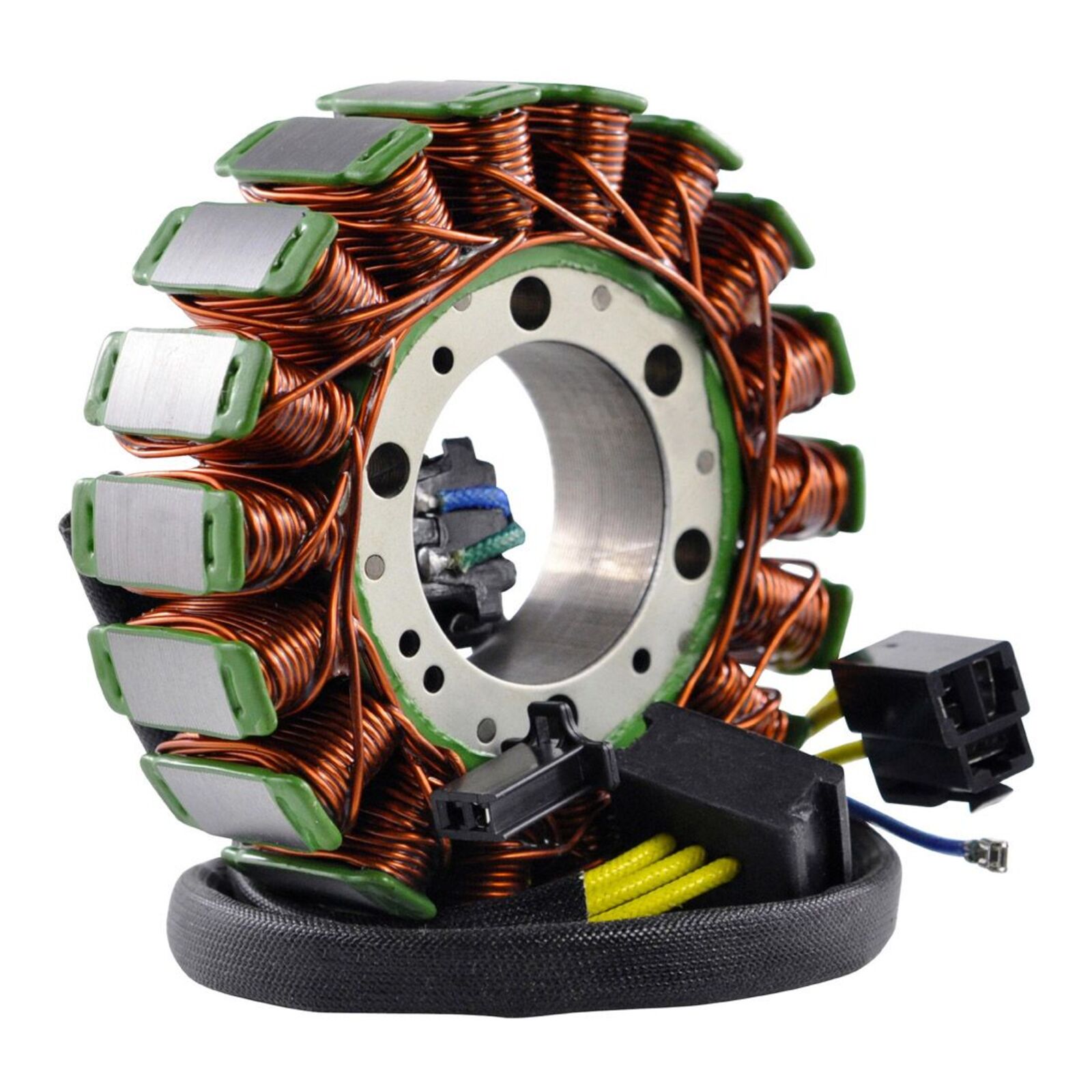

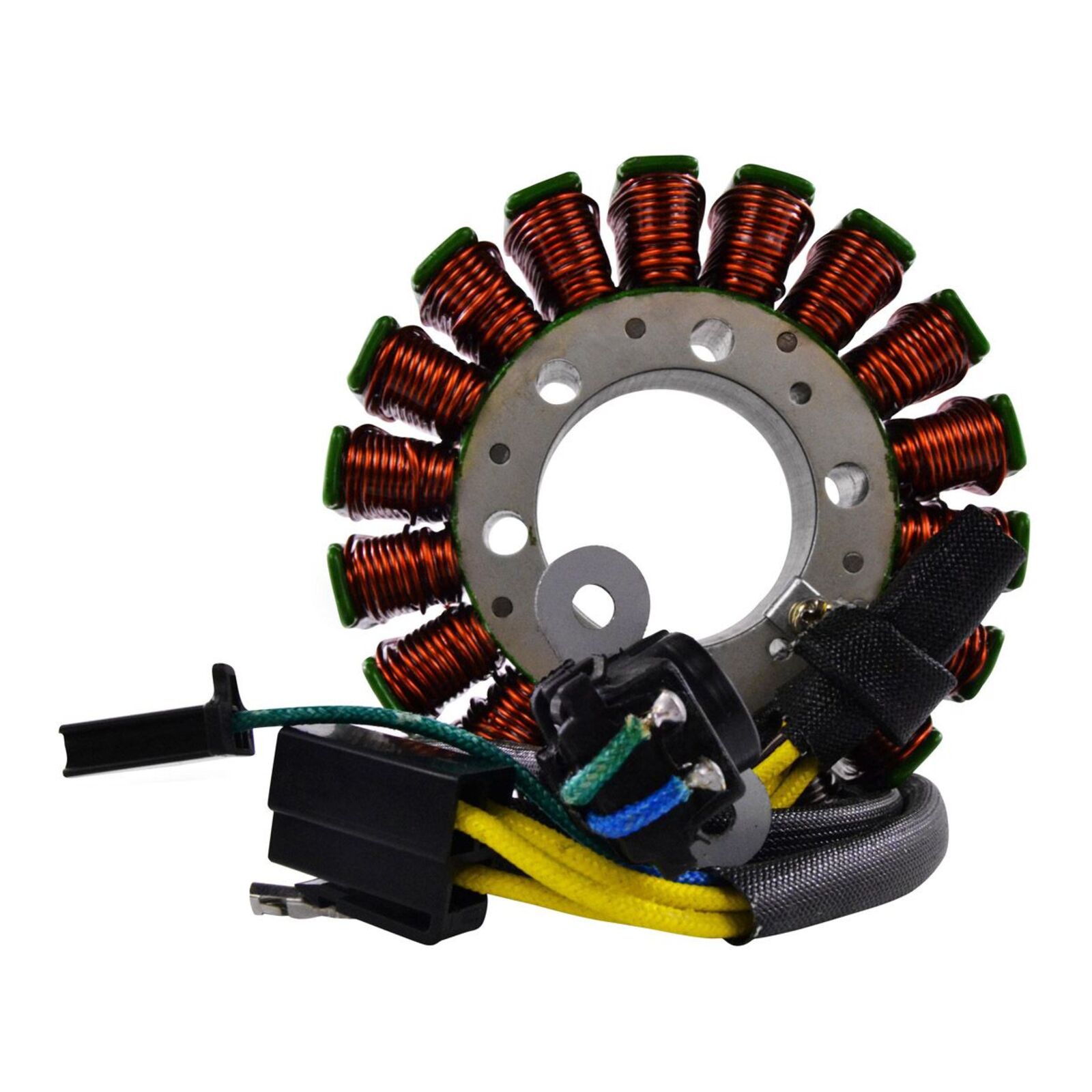

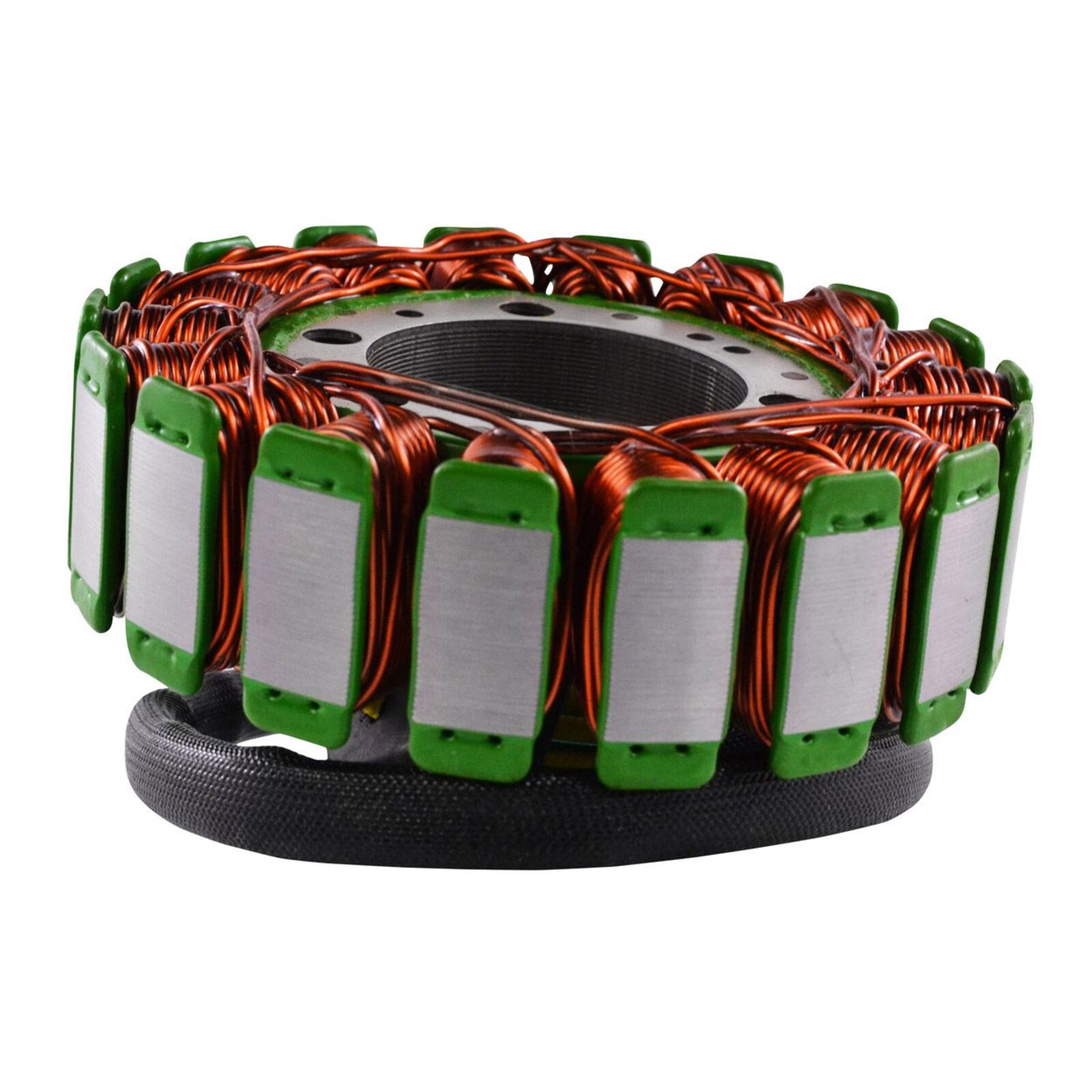

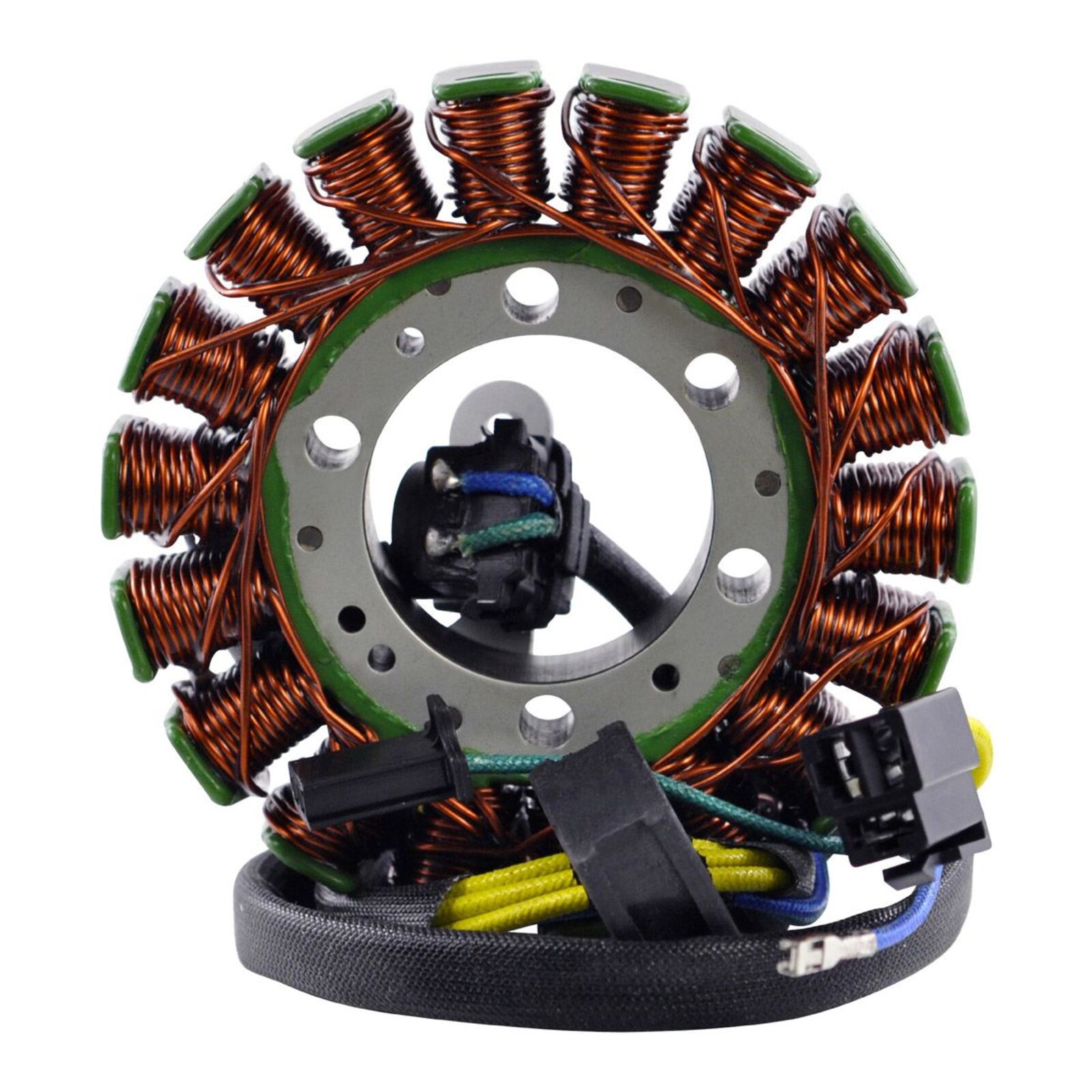

Generator Stator Suzuki GSX-R1300 Hayabusa ’99 – ’07 (RM01563)

Description

Direct replacement for your original unit.

Features:

• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200°C.

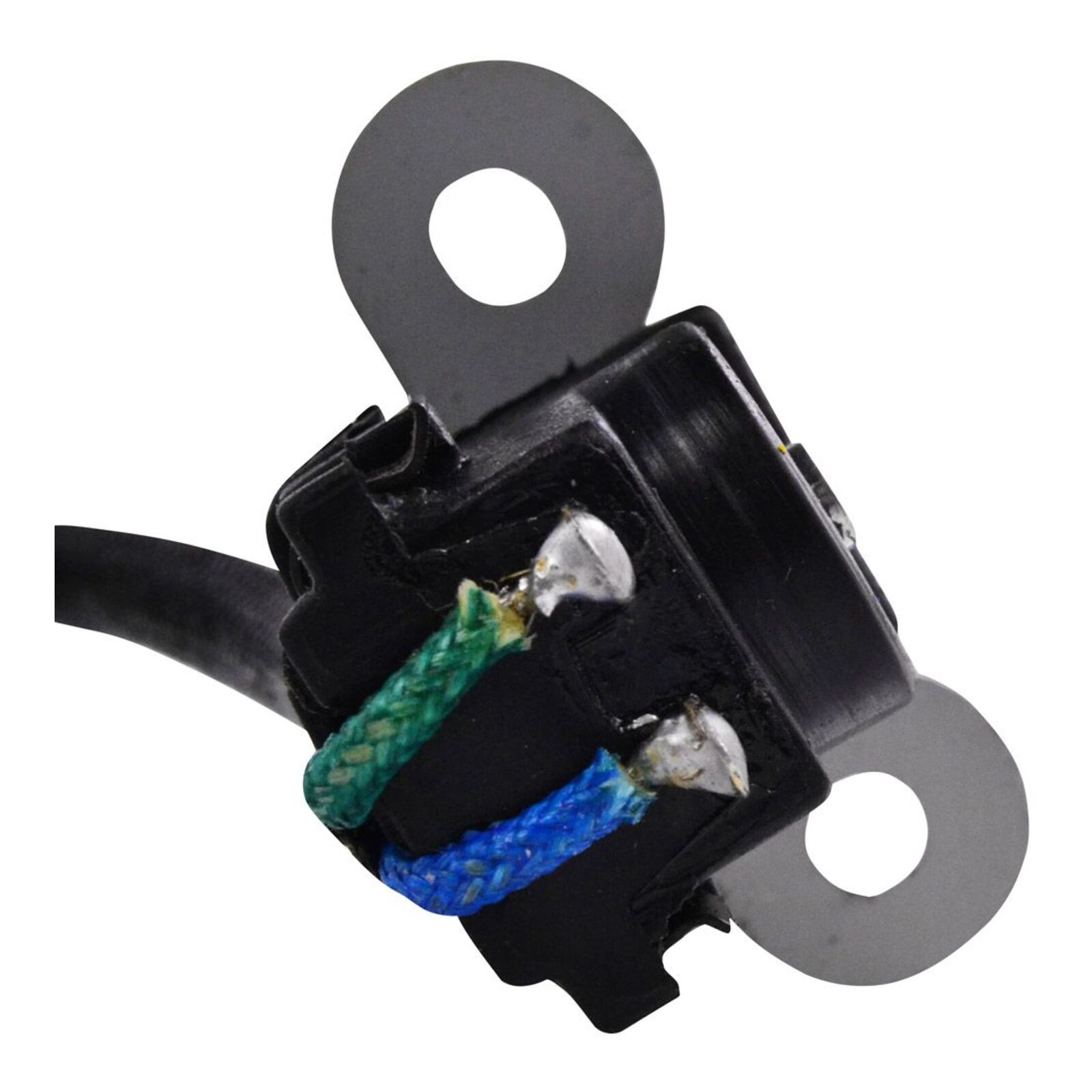

• Pick-up pulsar coil included.

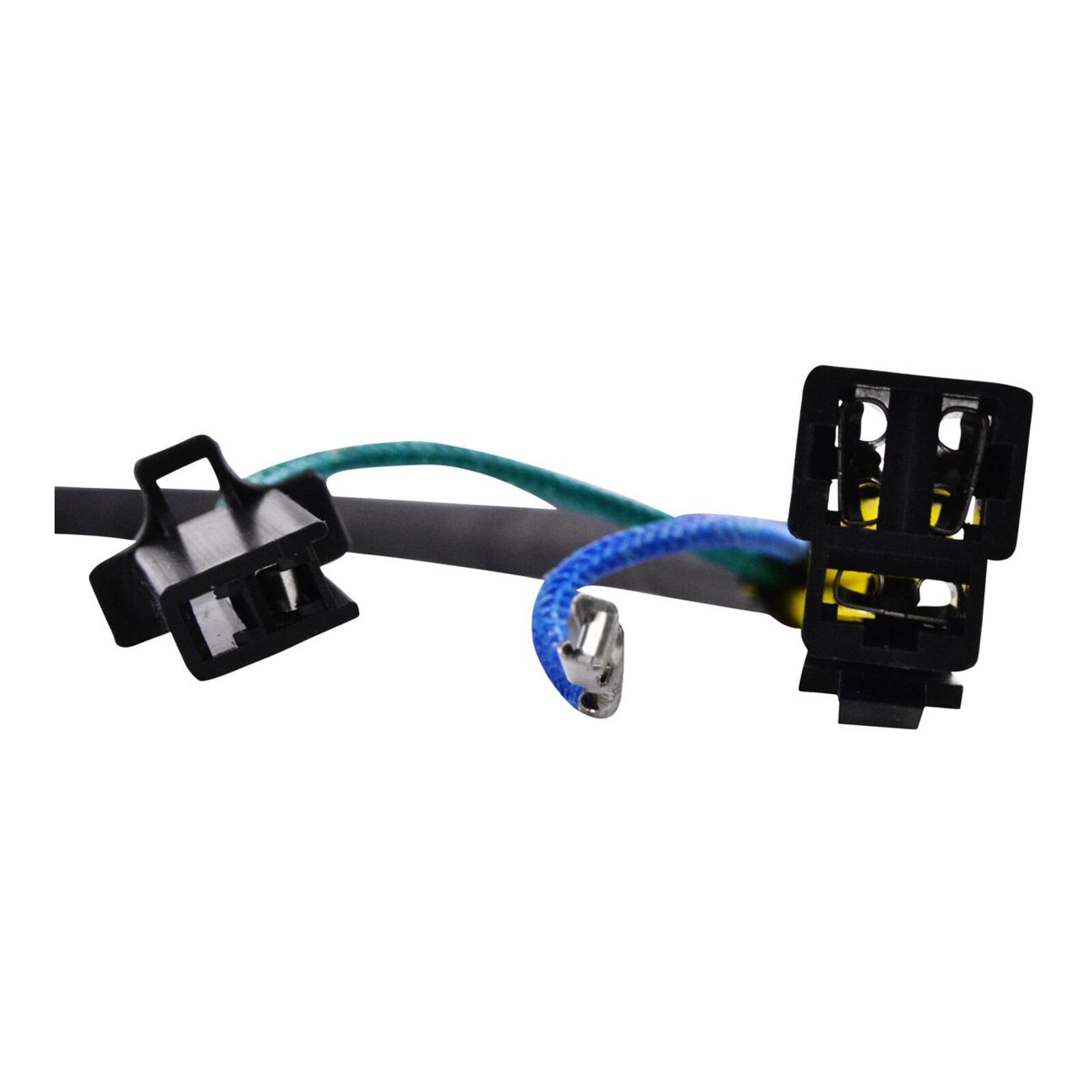

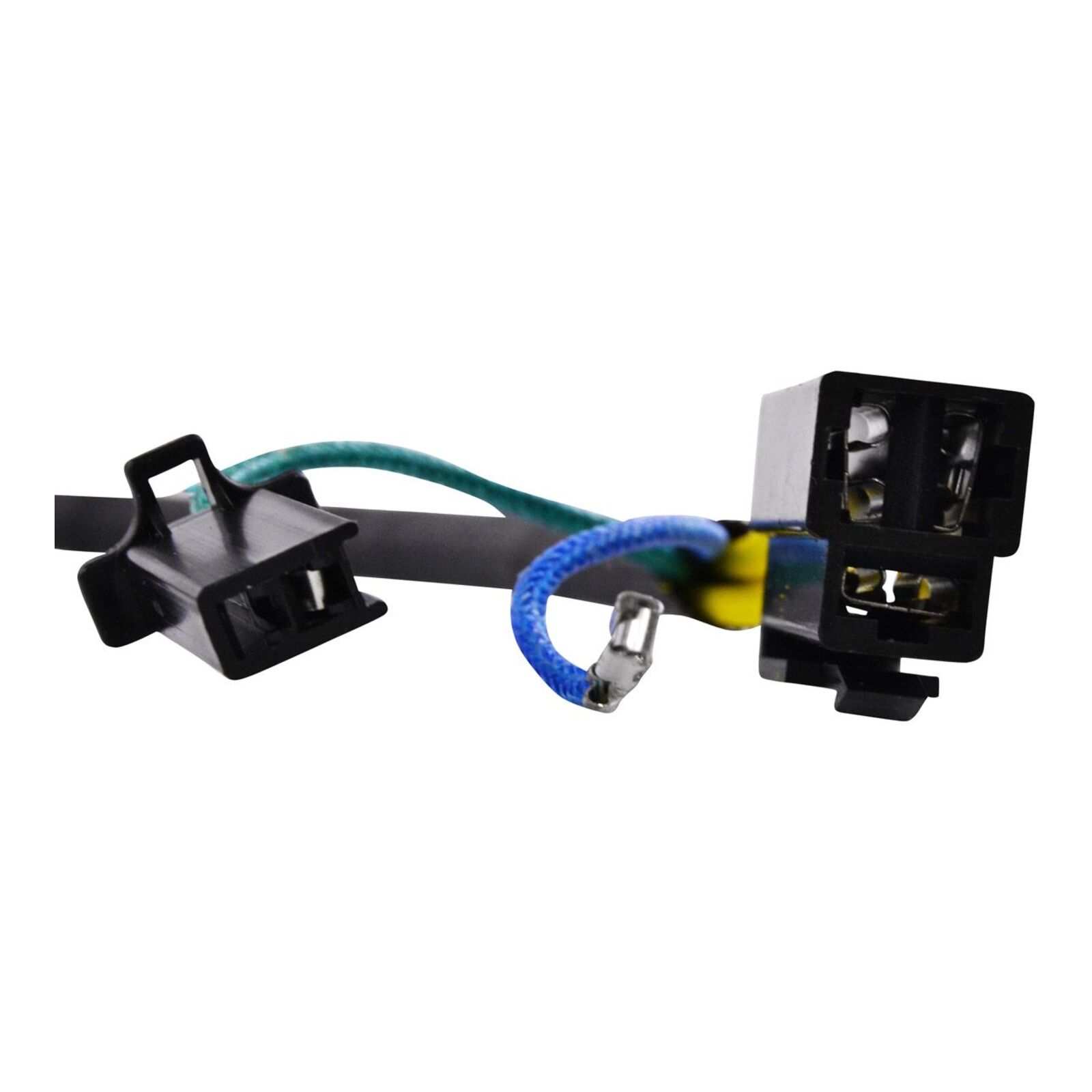

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Dimensions:

• Interio r diameter: 42 mm
• Exterior diameter: 106 mm
• Thickness: 22 mm
• Length of wires (stator to grommet): 100 mm
• Length of wires (grommet to plug): 490 mm
• Length of pickup coil’s wire (to grommet): 55 mm

Other Specifications:

• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5

Wire-to-Wire Resistance:

• Alternator: Yellow to Yellow = 0
