REGULATOR RECTIFIER SUZU GSXR 600 750 1000

Description

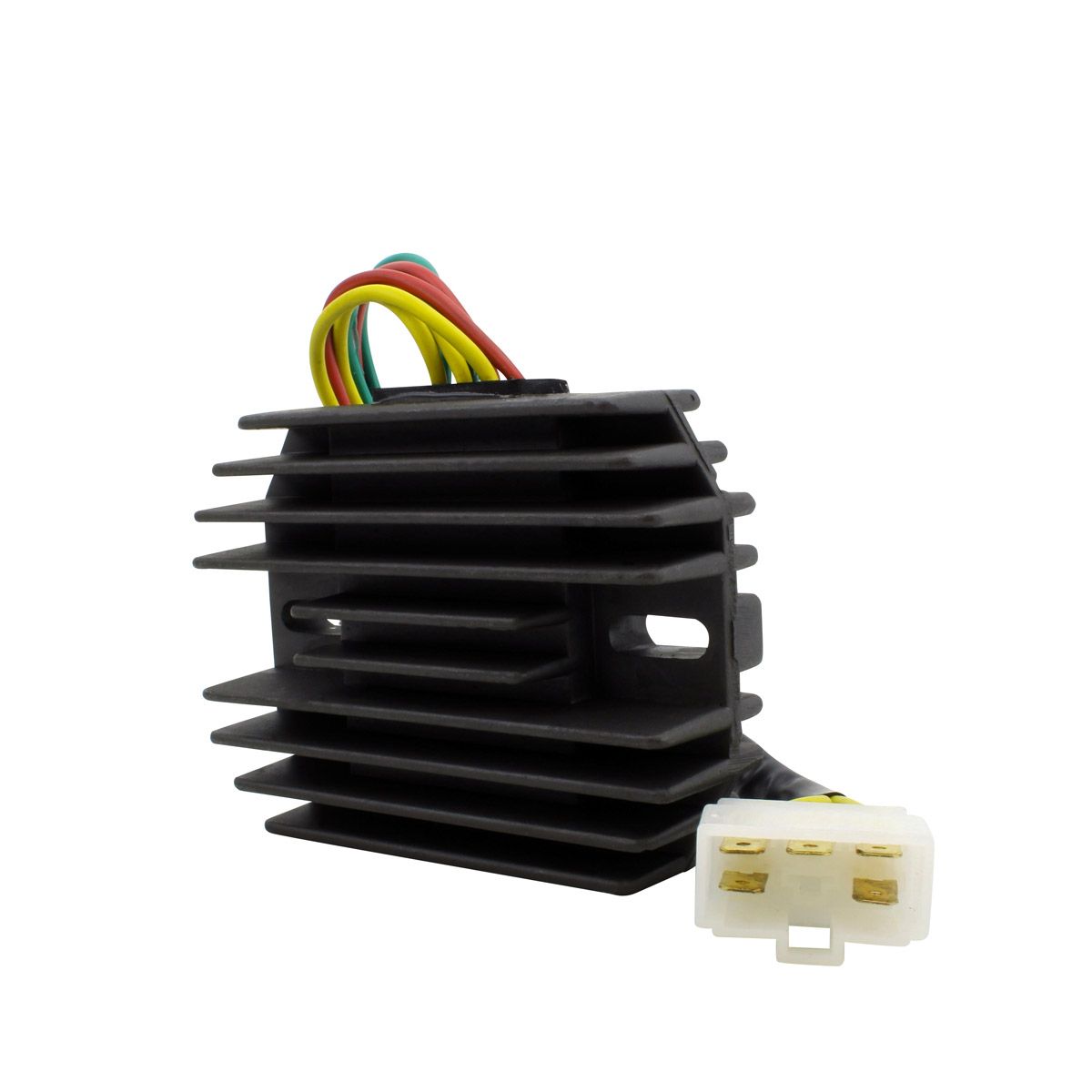

Brand new voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• The Quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components.
• All products shipped are tested

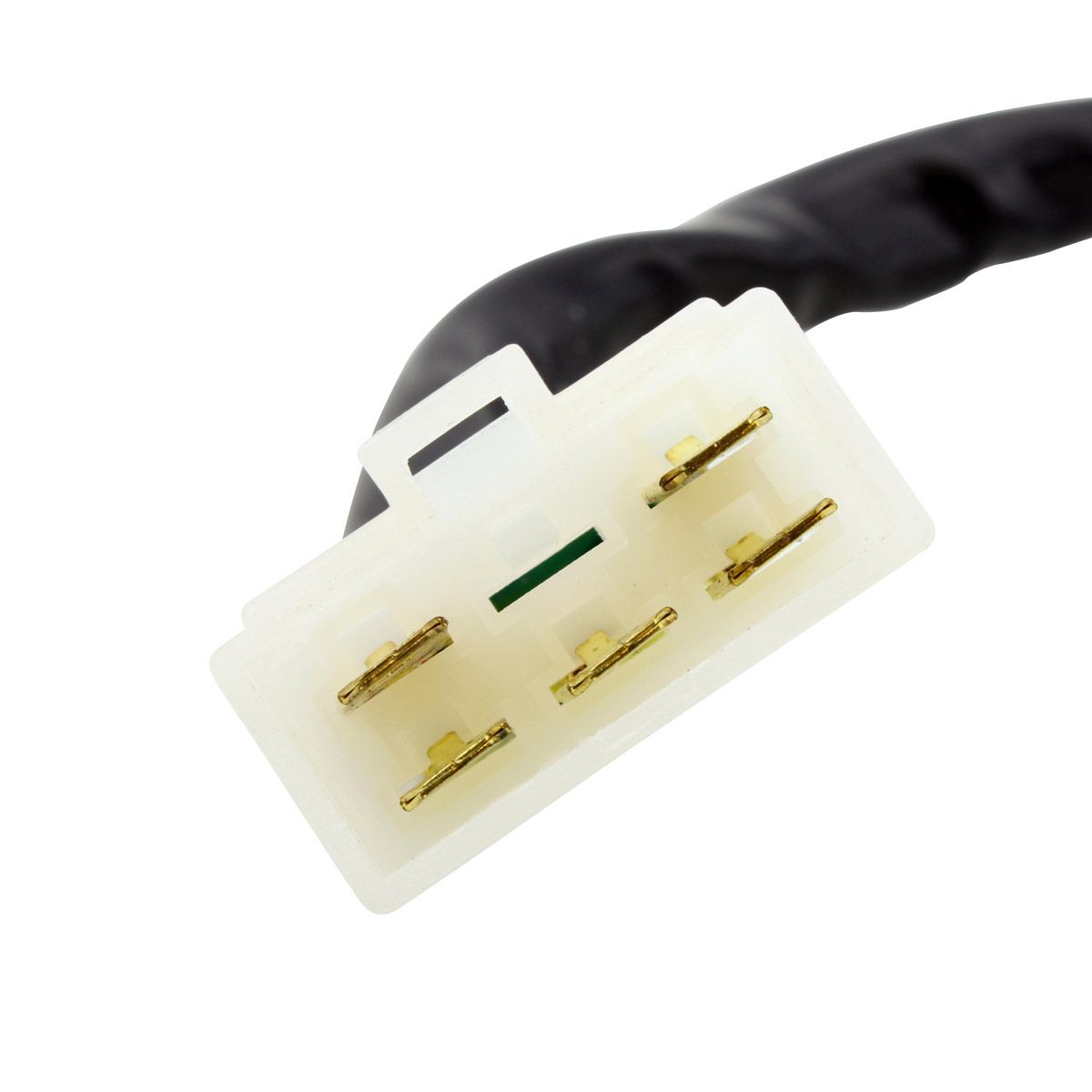

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Dimensions:
Width: 80mm
Length: 103mm
Height: 32mm
Fixation holes center to center: 75mm
Wires length: 120mm

Other specifications:
Number of plugs: 1
Number of pins: 5
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20° to 85°
